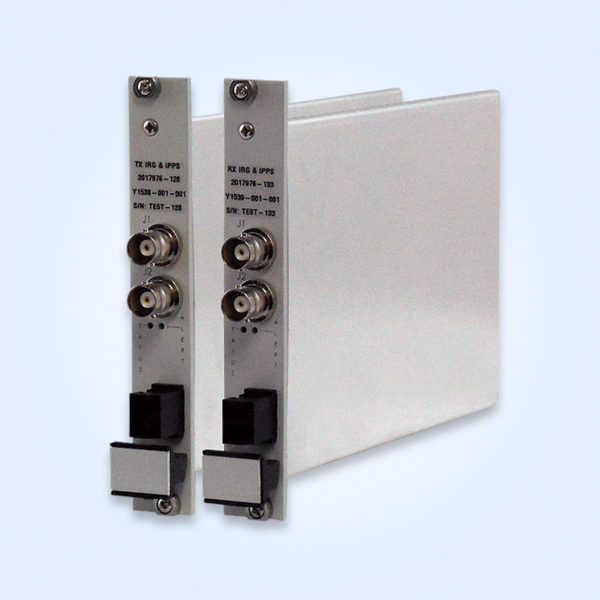

Receiver from Emcore
OTS-IRIG-Rx-B5-LC
Optiva OTS-IRIG (Inter-Range Instrumentation Group) B000 / 1 PPS (Pulse Per Second) Fiber Optic Intra-Facility links provide for simultaneous transmission of IRIG-B000 and 1PPS, or one signal each over fiber. These high-performance links feature low jitter and sharp rise and fall times. Optiva IRIG Links are SNMP compliant. They can be housed in the same chassis and monitored by the same Network Management System (NMS) as other Optiva cards to support transport of multiple signal formats and frequency bands in a single flexible platform.
Features
1 PPS (Pulse Per Second)
50 Ohm BNC
Dual-LC
30 ns
rms jitter
Excellent Rise/Fall Time
SNMP Monitoring and Control
High-Dynamic-Range
Optically-Isolated 1310 DFB Lasers
Fits in Optiva Enclosures
-16
6
1 & 2 Slot Enclosures
CE & CSA Certified
RoHS Compliant
Applications
Satellite Time Code
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | Emcore |
|---|---|
| Product Group | Receiver |
| Product Series | Optiva-OTS-1-Ref |
| Part Number | OTS-IRIG-Rx-B5-LC |
| Mod. freq. min. in GHz | 1PPS |
| Mod. freq. max. in GHz | 1PPS |
| Imped., Connector | 50 Ohm BNC |
| Lower Wavelength in nm | 1280 |
| Upper Wavelength in nm | 1580 |
| Faser in µm | SM 9/125 |
| Optical Connector | LC |
| max. Opt. Input Power | 7dBm |
| Package | Optiva Plug-in |
