UV-LED from Silanna UV
SN3-5U8P3L1
Silanna UV is the leading manufacturer of UV-LEDs with short wavelengths from 233 nm to 275 nm.
Markets
Biotechnology
Life Science
Medical Technology
Chemistry
Printing Technology
Safety Technology
Life Science
Medical Technology
Chemistry
Printing Technology
Safety Technology
Applications
Desinfection
Water treatment with inactivation of bacateria and viruses
Biotechnology
Medical technology
Measurement technology like gas sensing
Oil detection
Tin detection
Photo catalysis
Decomposition of chemical materials also for air treatment
Photo and immuno therapy
UV printing: Epoxy hardening
Exposure of glues and lithographic inks
Passport/document safety
Water treatment with inactivation of bacateria and viruses
Biotechnology
Medical technology
Measurement technology like gas sensing
Oil detection
Tin detection
Photo catalysis
Decomposition of chemical materials also for air treatment
Photo and immuno therapy
UV printing: Epoxy hardening
Exposure of glues and lithographic inks
Passport/document safety
Features

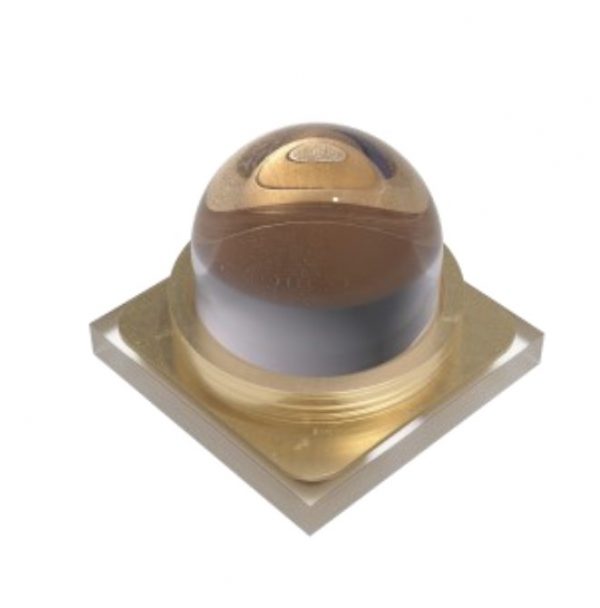

Silanna UV UV-LED: SN3-5U8P3L1
255 nm-LED with 0,85 mW typical optic power
Viewing angle of 34 °
20 mA operating current
Package: SMD 3535
SMD LED with lens
255 nm-LED with 0,85 mW typical optic power
Viewing angle of 34 °
20 mA operating current
Package: SMD 3535
SMD LED with lens
Benefits
High efficiency
Low maintenance cost
Leading quality, durability and reliability
Efficient production flow by SMD packages
Low maintenance cost
Leading quality, durability and reliability
Efficient production flow by SMD packages
- Specifications
- Data Sheets
- Videos
- Additional Products
Additional information
| Manufacturer | Silanna UV |
|---|---|
| Part Number | SN3-5U8P3L1 |
| Product Group | UV-LED |
| Wavelen gthin nm | 255 |
| Output Power in mW | 0,85 |
| Beam Angle in ° | 34 |
| Spectral Width in @50% | 12 |
| Operation Current in mA | 20 |
| Peak Current in mA | 100 |
| Operating Temp. Range in °C | 0 to 60 |
| Design | SMD |
| Package | 3535 |
| Type | SMD LED with lens |
Data Sheets
Videos
No video available
