MCAOM from G&H
MC80-5

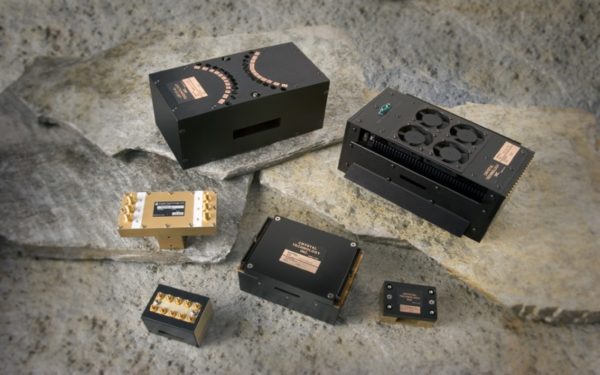

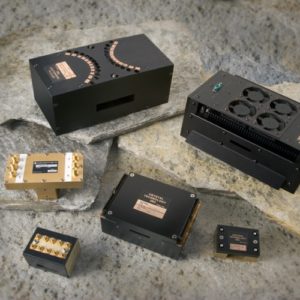

In addition to the single-channel AOMs, G&H has also specialised in the manufacture of multi-channel variants. Multi-channel modulators offer the possibility of modulating several laser beams independently of each other. In the meantime, a large number of customer-specific requirements have been implemented for the UV range up to the near infrared up to a maximum of 48 channels based on TeO2 and quartz!
Features
Longitudinal mode
highly efficient
very good contrast ratio
low insertion loss
diffracting unpolarized light
polarization maintaining
highly efficient
very good contrast ratio
low insertion loss
diffracting unpolarized light
polarization maintaining
Applications
Material processing
marking
micromachining
printing
marking
micromachining
printing
- Specifications
- Data Sheet
- Videos
Additional information
| Manufacturer | G&H |
|---|---|
| Part Number | 97-03303-01 |
| Product | MCAOM |
| Model | MC80-5 |
| Availability | on request |
| AO Medium | TeO2 |
| Acoustic mode | longitudinal |
| Acoustic Velocity in m/sec | 4200 |
| Frequency in MHz | 80 |
| Wavelength in nm | 1100 |
| Wavelength min. in nm | 1100 |
| Wavelength max. in nm | 1100 |
| Aperture in mm | 1,8 |
| typ. Risetime in ns | 159ns/mm |
| Bandwidth in MHz | 20 |
| Separation angle in mrad | 20,4 |
| Input Polarization | random |
| Output Polarization | not specified |
| max. RF Power in W | not specified |
| RF con | not specified |
| Device Cooling | not specified |
| Notes | just design proposal |
