340 nm-LED with 70 mW typical optic power|Viewing angle of 120 °|350 mA operating current|Package: SMD 3535|LED with flat window
340 nm-LED with 70 mW typical optic power|Viewing angle of 120 °|350 mA operating current|Package: SMD 3535|LED with flat window

UV-LED from Epigap Optronic
EOLS-325-695

EQ Photonics offers from manufacturer Epigap Optronic UV-LEDs with wavelengths from 255 nm to 405 nm, viewing angles from 6 ° to 120 ° in TO and SMD packages.

Markets

Biotechnology
Life Science
Medical Technology
Chemistry
Printing Technology
Safety Technology

Applications

Desinfection
Water treatment with inactivation of bacateria and viruses
Biotechnology
Medical technology
Measurement technology like gas sensing
Oil detection
Tin detection
Photo catalysis
Decomposition of chemical materials also for air treatment
Photo and immuno therapy
UV printing: Epoxy hardening
Exposure of glues and lithographic inks
Passport/document safety

Features

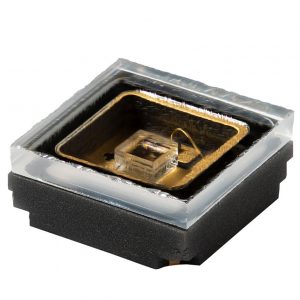

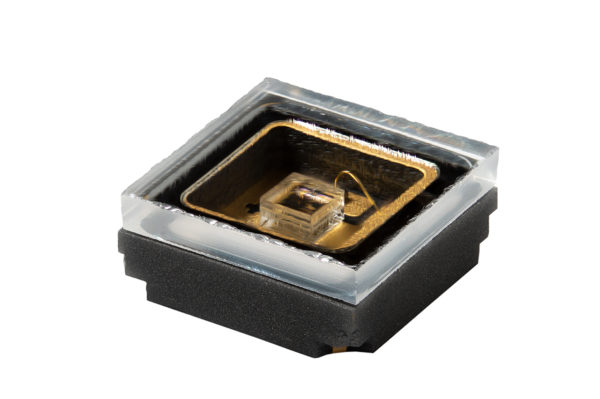

Epigap Optronic UV-LED: EOLS-325-695
325 nm-LED with 12 mW typical optic power
Viewing angle of 120 °
350 mA operating current
Package: SMD 3535
LED with flat window

Benefits

High efficiency
Low maintenance cost
Leading quality, durability and reliability
Efficient production flow by SMD packages

Additional information

Manufacturer

Epigap Optronic

Part Number

EOLS-325-695

Product Group

UV-LED

Wavelen gthin nm

325

Output Power in mW

12

Beam Angle in °

120

Operation Current in mA

350

Peak Current in mA

350

Operating Temp. Range in °C

-30 to +85

Design

SMD

Package

3535

Type

LED with flat window

Data Sheets

EOLS-325-695_.pdf

Videos

No video available

Additional Products

Si Photodiodes
