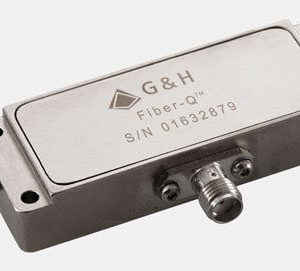

AOM fibre coupled from G&H TQY
S-M200-0.4C2A-3-F2S
Fiber-coupled acousto-optic modulators (AOMs) are a compact, robust soluiton for fiber laser modulation, frequency shifting and pulse picking, allowing direct control of timing, intensity, and temporal shape of laser output.
We offer a wide range of models covering 400nm-2000nm, rise times down to 6ns, with either SM or PM fiber.
In addition to a variety of standard models we offer customized solutions for almost all wavelenght, using different fibers, bare fiber or with optical connectors, higher optical power as well as designs with two outputs!
Features
Fast modulation
pulse picking
frequency shifting
power stabiliziation
high contrast
pulse picking
frequency shifting
power stabiliziation
high contrast
Applications
Interferometry
Microscopy
process control
inspection
Laserdoppler-application
Microscopy
process control
inspection
Laserdoppler-application
Markets
Scientific research
Lidar
industrial laser
sensing
telecommunication
Lidar
industrial laser
sensing
telecommunication
- Specifications
- Data Sheet
- Videos
Additional information
| Manufacturer | G&H TQY |
|---|---|
| Product | AOM fibre coupled |
| Model | S-M200-0.4C2A-3-F2S |
| AO Medium | TeO2 |
| Frequenzy in MHz | 200 |
| Wavelength typ in nm | 450 |
| Wavelength min. in nm | 450 |
| Wavelength max. in nm | 450 |
| typ. Risetime in ns | 25ns |
| Average Optical Power in W | 0,1 |
| Max. Insertion Loss in dB | 2,5 |
| Fibre type | Single Mode |
| Fibre termination | bare fibre |
| Fibre model | Nufern S405-XP |
| max. RF Power in W | 10 |
| RF connector | SMA |
