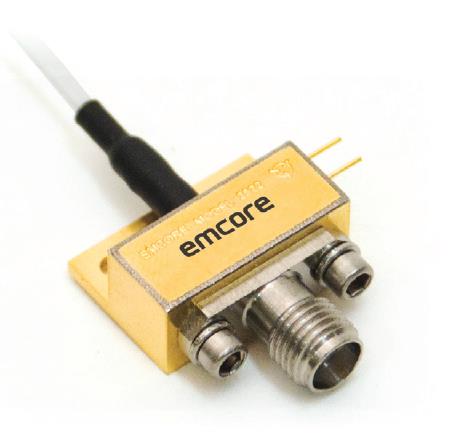

MW-Photodiode Module from Emcore
2522B-SF-DC-FA
EMCORE’s 2522 packaged photodiode incorporates a high-speed planar PIN photodiode to provide a highly reliable, high-power photodiode component. This package is well suited for receiver applications with optical preamplification. The diode is well matched over the microwave frequency band, thereby simplifying high-speed integration.
Features
Highly Reliable Planar Photodiode Technology
FC/APC or SC/APC
High Power Capability
High Breakdown Voltage
Bandwidth up to 22 GHz
Good RF matching, 12 dB typ.
Hermetically Sealed
FC/APC or SC/APC
High Power Capability
High Breakdown Voltage
Bandwidth up to 22 GHz
Good RF matching, 12 dB typ.
Hermetically Sealed
Applications
Antenna Remoting
Phased Arrays
Delay Lines
Phased Arrays
Delay Lines
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | Emcore |
|---|---|
| Product Group | MW-Photodiode Module |
| Product Series | 2522 |
| Part Number | 2522B-SF-DC-FA |
| Mod. freq. min. in GHz | DC |
| Mod. freq. max. in GHz | 20 |
| HF-Band | Broadband |
| Imped., Connector | 50 Ohm SMA |
| Amplifier Gain in dB | wo amp |
| Lower Wavelength in nm | 1280 |
| Upper Wavelength in nm | 1580 |
| Faser in µm | SM 9/125 |
| Optical Connector | FC/APC |
| Package | MW-Fotodiodenmodul |
