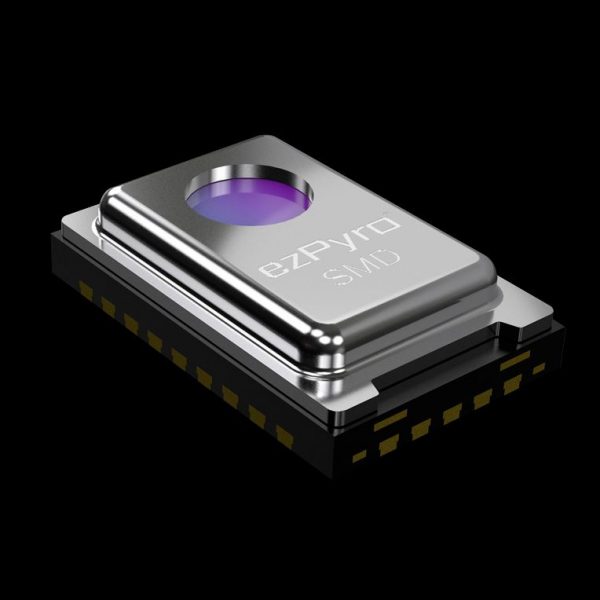

Pyroelectric Detector from Broadcom
AFBR-S6EPY12111
Broadcom offers over 10 years’ experience in manufacturing patent-protected silicon-based thin-film pyroelectric detectors which are uniquely small, light, and robust compared to standard bulk material pyroelectric detectors for infrared sensing. Using standard and well-established semiconductor manufacturing methods, Broadcom leads the world in thin-film pyroelectric technology based around its in-house expertise. Compared to todays other infrared detectors Broadcom detectors perform much better in terms of response times (smaller thermal mass), responsivity and low power consumption.
Markets
Industry
Medical Technology
Safety & Security
Science
Medical Technology
Safety & Security
Science
Applications
Broad band sensing
Features
PZT Pyroelectric Detector of Broadcom – AFBR-S6EPY12111, Channels: 1
Broadband Sensor im Sensitivity range 5000nm – 14000nm, Optimized for the MIR-range, Dimension of the sensitive area 0,64 x 0,64 mm
Broadband Sensor im Sensitivity range 5000nm – 14000nm, Optimized for the MIR-range, Dimension of the sensitive area 0,64 x 0,64 mm
Benefits
Low cost MIR sensors reduce the instrument cost
High sensitivity for detection of large concentration ranges
Variety of application-specific filters ease fast integration
Signal processing and evaluation kits ease and accelerate prototyping and hardware design
High sensitivity for detection of large concentration ranges
Variety of application-specific filters ease fast integration
Signal processing and evaluation kits ease and accelerate prototyping and hardware design
- Specifications
- Data Sheets
- Videos
- Additional Products
Additional information
| Manufacturer | Broadcom |
|---|---|
| Part Number | AFBR-S6EPY12111 |
| Product Group | Pyroelectric Detectors |
| Products | Pyroelectric Detector |
| Channels | 1 |
| Gas Sensing | Broadband |
| Wavelength Range | MIR |
| Technology | PZT |
| Lower Wavelength in nm | 5000 |
| Upper Wavelength in nm | 14000 |
| Dim. of Active Area in mm | 0,64 x 0,64 |
| Design | SMD |
| Package | SMD |
| D* in cm√Hz/W | 2,5x 10^8 |
| Rise Time in ns | 1x 10^7 |
| Modulation Frequency max. MHz | 2x 10^-5 |
| Option: Eva. Board or Kit | yes |
| Longpass 5 µm | yes |
| I2C Interface | yes |
