UV-VIS-NIR-Spectrometer from OtO Photonics
DS

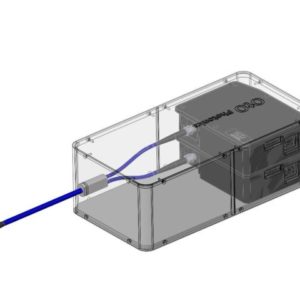

Broadband spectrometers of the DS-series have a modular platform using a spectrometer of the SE(EE)-series and a further SW-spectrometer module – both coupled by a Y-fiber. The wavelength range covers 180 – 1700 nm depending on the choice of the individual modules. Details on the spectral resolution and further technical data are described on page 4 of the data sheet. Their wide span of applications in industry and science range e.g. from chemical analysis to biophotonics. The robust opto-mechanical design enables the use in portable applications and under harsh environmental conditions.
Markets
Electronic
Chemical & Pharma
Medical
Biophotonics
Photonics
Semiconductor
Food
Science
Applikations
Laser characterization
LED testing
Filter characterization
Display testing
Colorimetry
Fluorescence spectroscopy
Water analysis
Gas analysis
Differential optical absorption spectroscopy (DOAS)
Continuous Emission Monitoring Systems (CEMS)
Ellipsometry
Blood analysis
OCT
Colour analysis
Thin-film measurement
Raman spectroscopy
Reflection spectroscopy
Absorption spectroscopy
Emission spectroscopy
Concentration
Material identification
LIBS
Features
Best-in-class shock and vibration resistance
Extraordinary temperature stability
Easy connected via SMA fiber
Continuous trigger function
Z5 CPU integrated
SpectraSmart readout and evaluation software
SDK and libraries
Large on-board buffer
Memory for up to 4000 spectra
USB and UART interface
Stray light calibration – optional
Intensity calibration – optional
Linearity calibration
CIE 1931 CIE 1976
TM 30 15 Rf & Rg and TM 30 15 Color Vector Graphic
No moving parts
Benefits
Precise measurement results using Cerny-Turner Design
Operation over a wide temperature range
24/7 operation with continuous measurement
Synchronization with light sources
Portable for mobile applications
Operation under harsh environmental conditions
Fast and easy operation with plug & play Windows software
Easy integration into the existing software environment
Directly available: reflection / transmission / absorption / concentration
Maintenance free
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | OtO Photonics |
|---|---|
| Part Number | DS |
| Product | UV-VIS-NIR-Spectrometer |
| Wavelength min. in nm | 180 |
| Wavelength max. in nm | 1700 |
| Resolution in nm | 0,2 |
| Choice Spectrometer Series | Broadband-Spectrometer 180…1700nm (DS Serie) |
| Choice Detector | Modular Set-up using SE- and EE (SW) Series |
