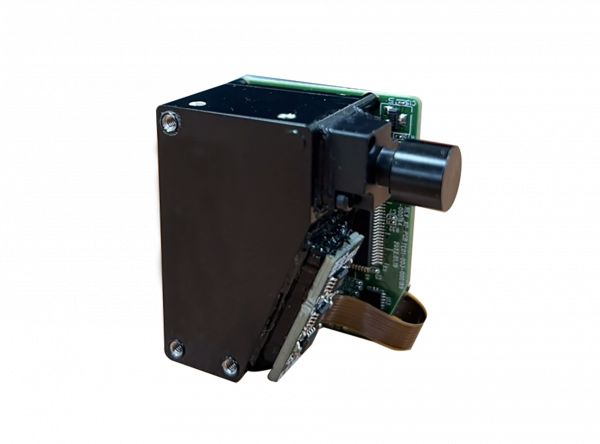

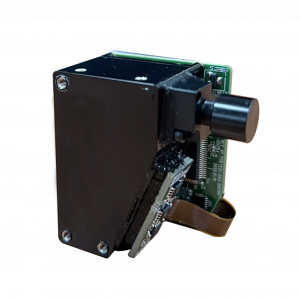

UV-VIS-NIR-Spectrometer from OtO Photonics
SB3134-100-FUVA
The various cost effective spectrometers of the SB series cover the UV-VIS-NIR range from 200 – 1100 nm. The most compact crossed Czerny-Turner design combined with an external PCB enables the use in small spaces.
Markets
Metrology
Electronic
Chemical & Pharma
Medical
Biophotonics
Photonics
Semiconductor
Print
Food
Science
Electronic
Chemical & Pharma
Medical
Biophotonics
Photonics
Semiconductor
Food
Science
Applikations
Optical characterization of light sources
Laser characterization
LED testing
Filter characterization
Display testing
Colorimetry
Fluorescence spectroscopy
Water analysis
Gas analysis
Differential optical absorption spectroscopy (DOAS)
Continuous Emission Monitoring Systems (CEMS)
Ellipsometry
Blood analysis
OCT
Colour analysis
Thin-film measurement
Raman spectroscopy
Reflection spectroscopy
Absorption spectroscopy
Emission spectroscopy
Concentration
Material identification
LIBS
Laser characterization
LED testing
Filter characterization
Display testing
Colorimetry
Fluorescence spectroscopy
Water analysis
Gas analysis
Differential optical absorption spectroscopy (DOAS)
Continuous Emission Monitoring Systems (CEMS)
Ellipsometry
Blood analysis
OCT
Colour analysis
Thin-film measurement
Raman spectroscopy
Reflection spectroscopy
Absorption spectroscopy
Emission spectroscopy
Concentration
Material identification
LIBS
Features
Stray light optimized Cerny-Turner design
Good temperature stability
Fast CMOS sensor
Easy connected via SMA fiber
SpectraSmart readout and evaluation software
SDK and libraries
USB and UART interface
No moving parts
Good temperature stability
Fast CMOS sensor
Easy connected via SMA fiber
SpectraSmart readout and evaluation software
SDK and libraries
USB and UART interface
No moving parts
Benefits
Most compact size using concave mirrors
Low weight
Synchronization with light sources
Portable for mobile applications
Fast and easy operation with plug & play Windows software
Easy integration into the existing software environment
Directly available: reflection / transmission / absorption / concentration
Maintenance free
Low weight
Synchronization with light sources
Portable for mobile applications
Fast and easy operation with plug & play Windows software
Easy integration into the existing software environment
Directly available: reflection / transmission / absorption / concentration
Maintenance free
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | OtO Photonics |
|---|---|
| Part Number | SB3134-100-FUVA |
| Product | UV-VIS-NIR-Spectrometer |
| Wavelength min. in nm | 180 |
| Wavelength max. in nm | 850 |
| Resolution in nm | 13,0 |
| Slit Size in µm | 100 |
| Bandwidth in nm | 670 |
| Grating in g/mm | 500 |
| Choice Spectrometer Series | Mikro-Spectrometer in CT-Design (SB Serie) |
| Choice Detector | UV-VIS Ultra Micro 40 x 36 x 25 mm (SMA) low-cost SB3134 |
| SNR | 350 |
| Dynamic Range | 4000 |
| Stray Light in % | 0,2 |
