UV-VIS-NIR-Spectrometer from OtO Photonics
PH1034-100-DUVN2A

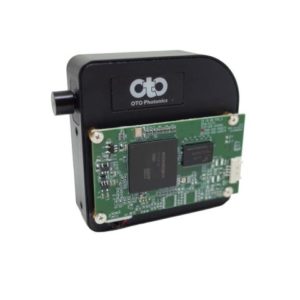

The various cost effective spectrometers of the PH series cover the UV-VIS-NIR range from 200 – 1700 nm. The most compact crossed Czerny-Turner design combined with an external PCB enables the use in small spaces.
Markets
Metrology
Electronic
Chemical & Pharma
Medical
Biophotonics
Photonics
Semiconductor
Print
Food
Science
Electronic
Chemical & Pharma
Medical
Biophotonics
Photonics
Semiconductor
Food
Science
Applikations
Optical characterization of light sources
Laser characterization
LED testing
Filter characterization
Display testing
Colorimetry
Fluorescence spectroscopy
Water analysis
Gas analysis
Differential optical absorption spectroscopy (DOAS)
Continuous Emission Monitoring Systems (CEMS)
Ellipsometry
Blood analysis
OCT
Colour analysis
Thin-film measurement
Reflection spectroscopy
Absorption spectroscopy
Emission spectroscopy
Concentration
Material identification
LIBS
Laser characterization
LED testing
Filter characterization
Display testing
Colorimetry
Fluorescence spectroscopy
Water analysis
Gas analysis
Differential optical absorption spectroscopy (DOAS)
Continuous Emission Monitoring Systems (CEMS)
Ellipsometry
Blood analysis
OCT
Colour analysis
Thin-film measurement
Reflection spectroscopy
Absorption spectroscopy
Emission spectroscopy
Concentration
Material identification
LIBS
Features
Stray light optimized crossed Cerny-Turner design
High temperature stability
Sensitive 3000 pixel CCD sensor
Easy connected via SMA fiber
Trigger function
Z5 CPU integrated
SpectraSmart readout and evaluation software
SDK and libraries
Large on-board buffer
Memory for up to 4000 spectra
USB and UART interface
Linearity calibration
CIE 1931 CIE 1976
TM 30 15 Rf & Rg and TM 30 15 Color Vector Graphic
No moving parts
High temperature stability
Sensitive 3000 pixel CCD sensor
Easy connected via SMA fiber
Trigger function
Z5 CPU integrated
SpectraSmart readout and evaluation software
SDK and libraries
Large on-board buffer
Memory for up to 4000 spectra
USB and UART interface
Linearity calibration
CIE 1931 CIE 1976
TM 30 15 Rf & Rg and TM 30 15 Color Vector Graphic
No moving parts
Benefits
Precise and fast measurement
Cost-effective Cerny-Turner solution
Most compact Cerny-Turner package
24/7 operation
Synchronization with light sources
Portable for mobile applications
Operation under harsh environmental conditions
Fast and easy operation with plug & play Windows software
Easy integration into the existing software environment
Directly available: reflection / transmission / absorption / concentration
Colorimeter data available
Maintenance free
Cost-effective Cerny-Turner solution
Most compact Cerny-Turner package
24/7 operation
Synchronization with light sources
Portable for mobile applications
Operation under harsh environmental conditions
Fast and easy operation with plug & play Windows software
Easy integration into the existing software environment
Directly available: reflection / transmission / absorption / concentration
Colorimeter data available
Maintenance free
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | OtO Photonics |
|---|---|
| Part Number | PH1034-100-DUVN2A |
| Product | UV-VIS-NIR-Spectrometer |
| Wavelength min. in nm | 200 |
| Wavelength max. in nm | 1050 |
| Resolution in nm | 16,0 |
| Slit Size in µm | 100 |
| Bandwidth in nm | 850 |
| Grating in g/mm | 150 |
| Choice Spectrometer Series | Optimized Cost in Cerny-Turner-Performance (PH Serie) |
| Choice Detector | Low Cost & Fair Stray Light Suppression PH1034 |
| SNR | 360 |
| Dynamic Range | 5650 |
| Stray Light in % | 0,2 |
