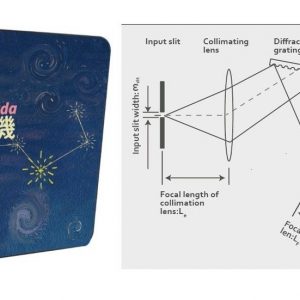

UV-VIS-NIR-Spectrometer from OtO Photonics
PD2080-010-V25

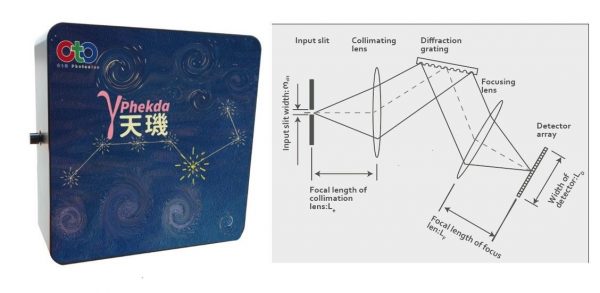

These ultra-high-resolution general-purpose micro-spectrometers featuring a T-R-T (transmissive-reflective-transmissive) optical design with resolutions up to 0.1nm. The innovative T-R-T design provides the flexibility of highly customizable wavelength ranges. You can choose the range in the VIS or NIR (within limits of 400 – 1000 nm or 900 – 1700 nm) to fit the specific needs.
Markets
Metrology
Electronic
Chemical & Pharma
Medical
Biophotonics
Photonics
Semiconductor
Print
Food
Science
Electronic
Chemical & Pharma
Medical
Biophotonics
Photonics
Semiconductor
Food
Science
Applikations
Optical characterization of light sources
Laser characterization
LED testing
Filter characterization
Display testing
Fluorescence spectroscopy
Gas analysis
Differential optical absorption spectroscopy (DOAS)
Continuous Emission Monitoring Systems (CEMS)
Ellipsometry
Blood analysis
OCT
Colour analysis
Thin-film measurement
Raman spectroscopy
Reflection spectroscopy
Absorption spectroscopy
Emission spectroscopy
Concentration
Material identification
LIBS
Laser characterization
LED testing
Filter characterization
Display testing
Fluorescence spectroscopy
Gas analysis
Differential optical absorption spectroscopy (DOAS)
Continuous Emission Monitoring Systems (CEMS)
Ellipsometry
Blood analysis
OCT
Colour analysis
Thin-film measurement
Raman spectroscopy
Reflection spectroscopy
Absorption spectroscopy
Emission spectroscopy
Concentration
Material identification
LIBS
Features
Czerny-Turner-Technology
Customized wavelength range
Easy connected via SMA fiber
SpectraSmart readout and evaluation software
SDK and libraries
USB and UART interface
No moving parts
Customized wavelength range
Easy connected via SMA fiber
SpectraSmart readout and evaluation software
SDK and libraries
USB and UART interface
No moving parts
Benefits
Synchronization with light sources
Portable for mobile applications
24/7 operation with continuous measurement
Fast and easy operation with plug & play Windows software
Easy integration into the existing software environment
Maintenance free
Portable for mobile applications
24/7 operation with continuous measurement
Fast and easy operation with plug & play Windows software
Easy integration into the existing software environment
Maintenance free
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | OtO Photonics |
|---|---|
| Part Number | PD2080-010-V25 |
| Product | UV-VIS-NIR-Spectrometer |
| Wavelength min. in nm | 535 |
| Wavelength max. in nm | 650 |
| Resolution in nm | 0,1 |
| Slit Size in µm | 10 |
| Bandwidth in nm | 125 |
| Grating in g/mm | 1500 |
| Choice Spectrometer Series | Ultra-high-resolution spectrometer (PD/MR/DB) |
| Choice Detector | 4096 Pixel CMOS |
| SNR | 350 |
| Dynamic Range | 3200 |
| Stray Light in % | NA |
