Photodiode from Opto Diode

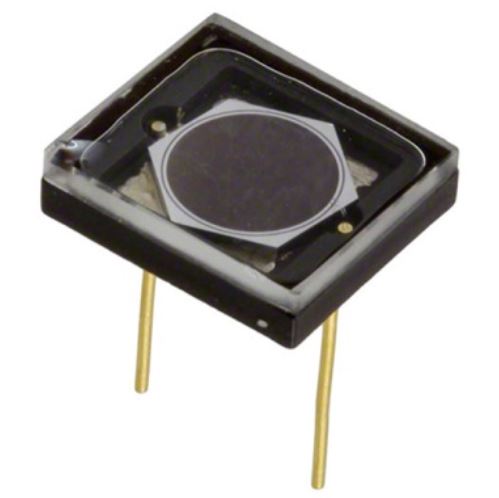

UVG20S
Opto Diode develops and manufactures Silicon Photodiodes, Photodiode amplifier combinations, PbS and PbSe Detectors and LEDs. Development, Waferfab and Assembly are located in Camarillo/California.
Typical applications for their products include photo-electric controls; medical, scientific and industrial fluorescence; guided missile systems, ophthalmology, LED based tracking systems for surgery, vending machines and aviation lighting. A small portfolio of standard components gives an impression of the design and production capabilities of Opto Diode.
Developing customized chip geometries belongs to Opto Diodes daily business. A cost-efficient devlopment in short time avoids unnecessary compromises and offers the perfect solution for each specific task.
Markets
Lithography
Industry
Laser technology
Applications
Features
Ideal for 190 nm to 400 nm
100% internal quantum efficiency
with UV-Quartzwindow
Benefits
Fast system response
Easy system integration
Rad hardness
- Specifications
- Data Sheets
- Videos
Additional information
| Manufacturer | Opto Diode |
|---|---|
| Part Number | UVG20S |
| Product Group | Photodiodes |
| Products | Photodiode |
| Wavelength Range | UV |
| Technology | Si |
| Lower Wavelength in nm | 190 |
| Upper Wavelength in nm | 1100 |
| Peak Wavelength in nm | 235 |
| Dim. of Active Area in mm | 5.5 |
| Design | COS |
| Package | C20 |
| Responsivity in A/W | 0.15 |
| Rise Time in ns | 4000 |
