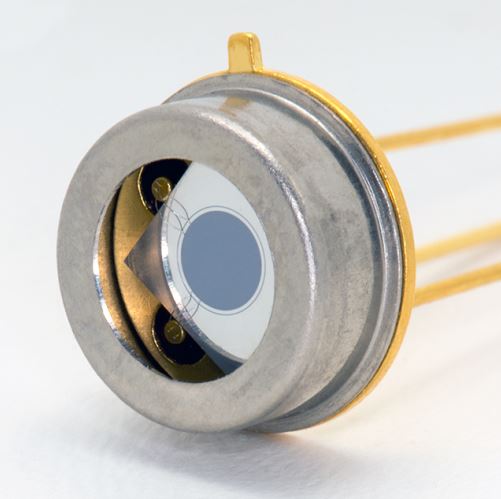

Photodiode from Opto Diode
SXUV5
Opto Diode develops and manufactures Silicon Photodiodes, Photodiode amplifier combinations, PbS and PbSe Detectors and LEDs. Development, Waferfab and Assembly are located in Camarillo/California.
Typical applications for their products include photo-electric controls; medical, scientific and industrial fluorescence; guided missile systems, ophthalmology, LED based tracking systems for surgery, vending machines and aviation lighting. A small portfolio of standard components gives an impression of the design and production capabilities of Opto Diode.
Developing customized chip geometries belongs to Opto Diodes daily business. A cost-efficient devlopment in short time avoids unnecessary compromises and offers the perfect solution for each specific task.
Markets
Lithography
Industry
Laser technology
Applications
Particle accelerators
Storage rings
XUV/EUV solutions
Beamline Instrumentation
Power monitoring
Features
Ideal for EUV-detection
Stable sensitivity at radiation with extreme UV-radiation (EUV)
Benefits
Fast system response
Easy system integration
Rad hardness
- Specifications
- Data Sheets
- Videos
Additional information
| Manufacturer | Opto Diode |
|---|---|
| Part Number | SXUV5 |
| Product Group | Photodiodes |
| Products | Photodiode |
| Wavelength Range | UV |
| Technology | Si |
| Lower Wavelength in nm | 1 |
| Upper Wavelength in nm | 1100 |
| Peak Wavelength in nm | 13 |
| Dim. of Active Area in mm | 2.5 |
| Design | COS |
| Package | TO5B |
| Responsivity in A/W | 0.22 |
| Rise Time in ns | 1 |
