Photodiode from Opto Diode

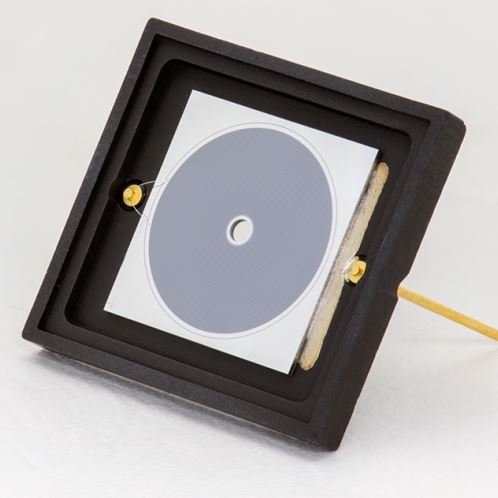

AXUV63HS1-CH
Opto Diode develops and manufactures Silicon Photodiodes, Photodiode amplifier combinations, PbS and PbSe Detectors and LEDs. Development, Waferfab and Assembly are located in Camarillo/California.
Typical applications for their products include photo-electric controls; medical, scientific and industrial fluorescence; guided missile systems, ophthalmology, LED based tracking systems for surgery, vending machines and aviation lighting. A small portfolio of standard components gives an impression of the design and production capabilities of Opto Diode.
Developing customized chip geometries belongs to Opto Diode’s daily business. A cost-efficient devlopment in short time avoids unnecessary compromises and offers the perfect solution for each specific task.
Markets
Lithography
Industry
Laser technology
Applications
Particle accelerators
Storage rings
XUV/EUV solutions
Beamline Instrumentation
Power monitoring
Features
Ideal for EUV-detection
Detection area with 9 mm diameter and 1 mm center hole
100% internal quantum efficiency
Benefits
Fast system response
Easy system integration
Rad hardness
- Specifications
- Data Sheets
- Videos
- Additional Products
Additional information
| Manufacturer | Opto Diode |
|---|---|
| Part Number | AXUV63HS1-CH |
| Product Group | Photodiodes |
| Products | Photodiode |
| Wavelength Range | UV |
| Technology | Si |
| Lower Wavelength in nm | 0,0124 |
| Upper Wavelength in nm | 1100 |
| Dim. of Active Area in mm | 9 |
| Design | COS |
| Package | M63LP |
| Responsivity in A/W | 0,27 |
| Rise Time in ns | 2 |
| Center Hole | yes |
