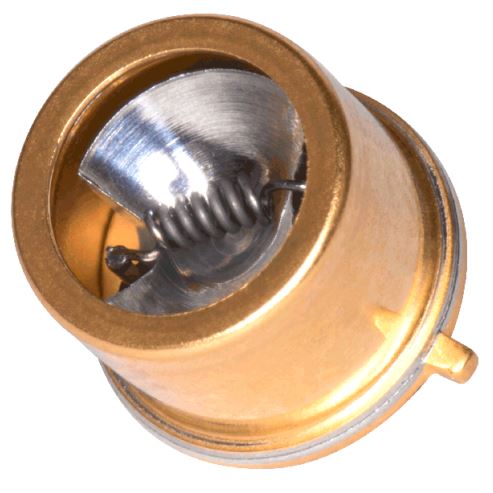

IR Emitter (DC) from Opto Diode
40100
Opto Diode Corp. was established in 1981 as an independent, privately held corporation dedicated to supplying the highest output IRLED’s in the world. They have since branched out to offer high power visible LED’s, LED arrays, silicon photodiodes, UV photodiodes as well as IR detectors and emitters. OptoDiode’s quality system is ISO 9001 compliant and has been approved by some of the largest corporations in the world, both commercial and military. Typical applications for their products include photo-electric controls; medical, scientific and industrial fluorescence; guided missile systems, ophthalmology, LED based tracking systems for surgery, vending machines and aviation lighting.
Markets
Environmental
Industrial
Safety and Security
Applications
Emission monitoring
Spectroscopy
Control systems
Thermal Monitoring
Flame monitoring and detection
Defense and Security
Features
Wavelength range 1 to 14 µm
Power 1,15 W
In TO5 package
Window: Windowless
benefits
High efficiency
Low maintenance cost
Leading quality, durability and reliability
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | Opto Diode |
|---|---|
| Part Number | 40100 |
| Product | IR Emitter (DC) |
| Lower Wavelength in µm | 1 |
| Upper Wavelength in µm | 14 |
| Output Power in W | 1.15 |
| Voltage in V | 1.10 |
| Current in A | 1.05 |
| Emissivity | 0.7 |
| Design | TO |
| Package | TO5 |
| Type | Windowless |
Data Sheet
Videos
No video available
