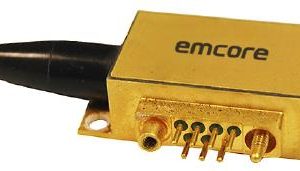

Laser Diode Module from Emcore
1542B-SF-FA
The 1542 7 GHz 1310 nm Microwave Distributed Feedback (DFB) Laser provides exceptional performance for linear fiber optics communications in very wide bandwidth applications. EMCORE’s linear fiber optics are an excellent alternative to using coaxial cable systems to transmit 10 MHz to 18 GHz signals. They offer significant improvements in reliability of microwave communications networks by transmitting the RF signal in its original format.
The basic 1542 laser module can be integrated into a complete transmitter either as a flange-mount for extreme environments, or as a plug-in for EMCORE’s System 10000 rack-mount system.
Applications
Cellular and PCS networks
Military communicationsTracking, telemetry, and control
Features
Long distance communications
10 MHz to 7 GHz bandwidth
Built-in optical isolator
1310 nm
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | Emcore |
|---|---|
| Product Group | Laser Diode Module |
| Product Series | 1542B/C/D/E |
| Part Number | 1542B-SF-FA |
| Mod. freq. min. in GHz | 0,01 |
| Mod. freq. max. in GHz | 7 |
| HF-Band | Broadband |
| Imped., Connector | 50 Ohm SMA Female |
| Amplifier Gain in dB | no |
| Wave Length nm | 1310 |
| Faser in µm | SM 9/125 |
| Optical Connector | FC/APC |
| Opt. Power in mW | 8 |
| Package | Laser Diode Module |
| Mounting | Indoor |
| Liniewidth in MHz | 10 |
| Monitordiode | Ja |
| TEC | Ja |
| Isolator | single |
| Thermistor | Ja |
