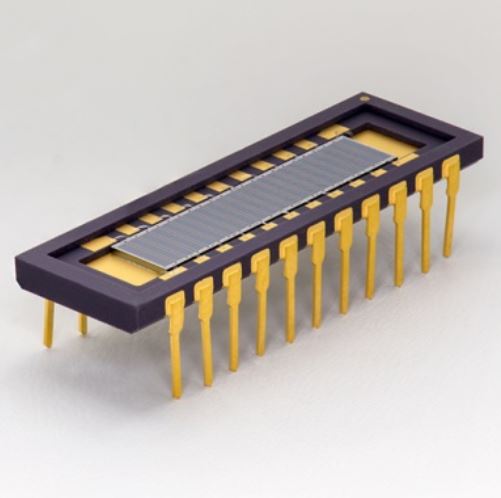

Photodiode Array from Opto Diode
AXUV20ELG
Opto Diode develops and manufactures Silicon Photodiodes, Photodiode amplifier combinations, PbS and PbSe Detectors and LEDs. Development, Waferfab and Assembly are located in Camarillo/California.
Typical applications for their products include photo-electric controls; medical, scientific and industrial fluorescence; guided missile systems, ophthalmology, LED based tracking systems for surgery, vending machines and aviation lighting. A small portfolio of standard components gives an impression of the design and production capabilities of Opto Diode.
Developing customized chip geometries belongs to Opto Diode’s daily business. A cost-efficient devlopment in short time avoids unnecessary compromises and offers the perfect solution for each specific task.
Markets
Lithography
Industry
Laser technology
Applications
Particle accelerators
Storage rings
XUV/EUV solutions
Beamline Instrumentation
Power monitoring
Features
Ideal for electron detection
100% internal quantum efficiency
22 Pin Dual-In-Line housing
Benefits
Fast system response
Easy system integration
Rad hardness
- Specifications
- Data Sheets
- Videos
- Additional Products
Additional information
| Manufacturer | Opto Diode |
|---|---|
| Part Number | AXUV20ELG |
| Product Group | Photodiodes |
| Products | Photodiode Array |
| Channels | 20 |
| Wavelength Range | UV |
| Technology | Si |
| Lower Wavelength in nm | 0,0124 |
| Upper Wavelength in nm | 1100 |
| Dim. of Active Area in mm | 0,75 x 4 (x20) |
| Design | Array 1×20 |
| Package | C20EL |
| Responsivity in A/W | 0,27 |
| Rise Time in ns | 200 |
| Linear Array | yes |
