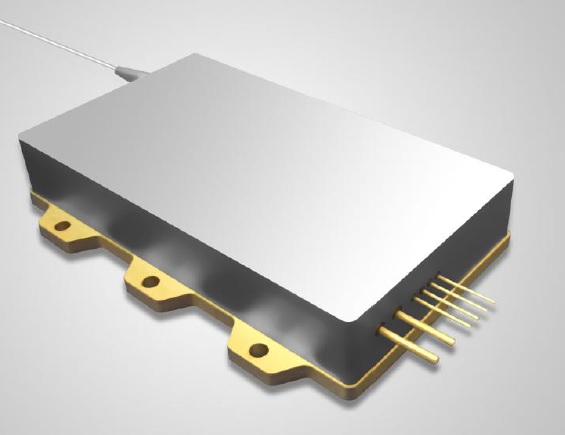

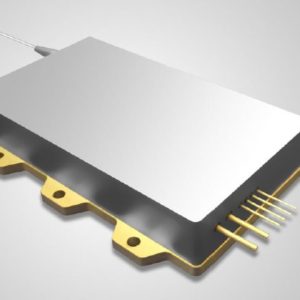

Fiber-coupled laser diode from BWT
K793DG5RN-50.00W
For more than 20 years BWT develops and manufactures fiber-coupled laser diodes for medical applications, as pump module for DPSS- and fiber lasers or as direct laser source for laser material processing applications. With more than 900 employees (15 % in R&D) and five lacations in China, BWT is one of the global leading company in this industry.
Applications
Pumping fiber & DPSS lasers (2µm)
Benefits
ISO 9001:2015 certified
100% Outgoing inspection
100% vertical integrated and fully automated processes
cost-efficient due to vertical integration
Local technical support by BWT Germany in Mainz
100% Outgoing inspection
100% vertical integrated and fully automated processes
cost-efficient due to vertical integration
Local technical support by BWT Germany in Mainz
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
| Manufacturer | BWT |
|---|---|
| Part Number | K793DG5RN-50.00W |
| Product | Fiber-coupled laser diode |
| Wavelength nm | 793 |
| Wavelength tolerance nm | +/-3 |
| Output Power | 50 W |
| Type | laser module |
| Package | G5 |
| Fiber µm | 105 |
| Line Width nm | 2 |
| Pulse Width ns | cw |
| Repetition Rate MHz | cw |
